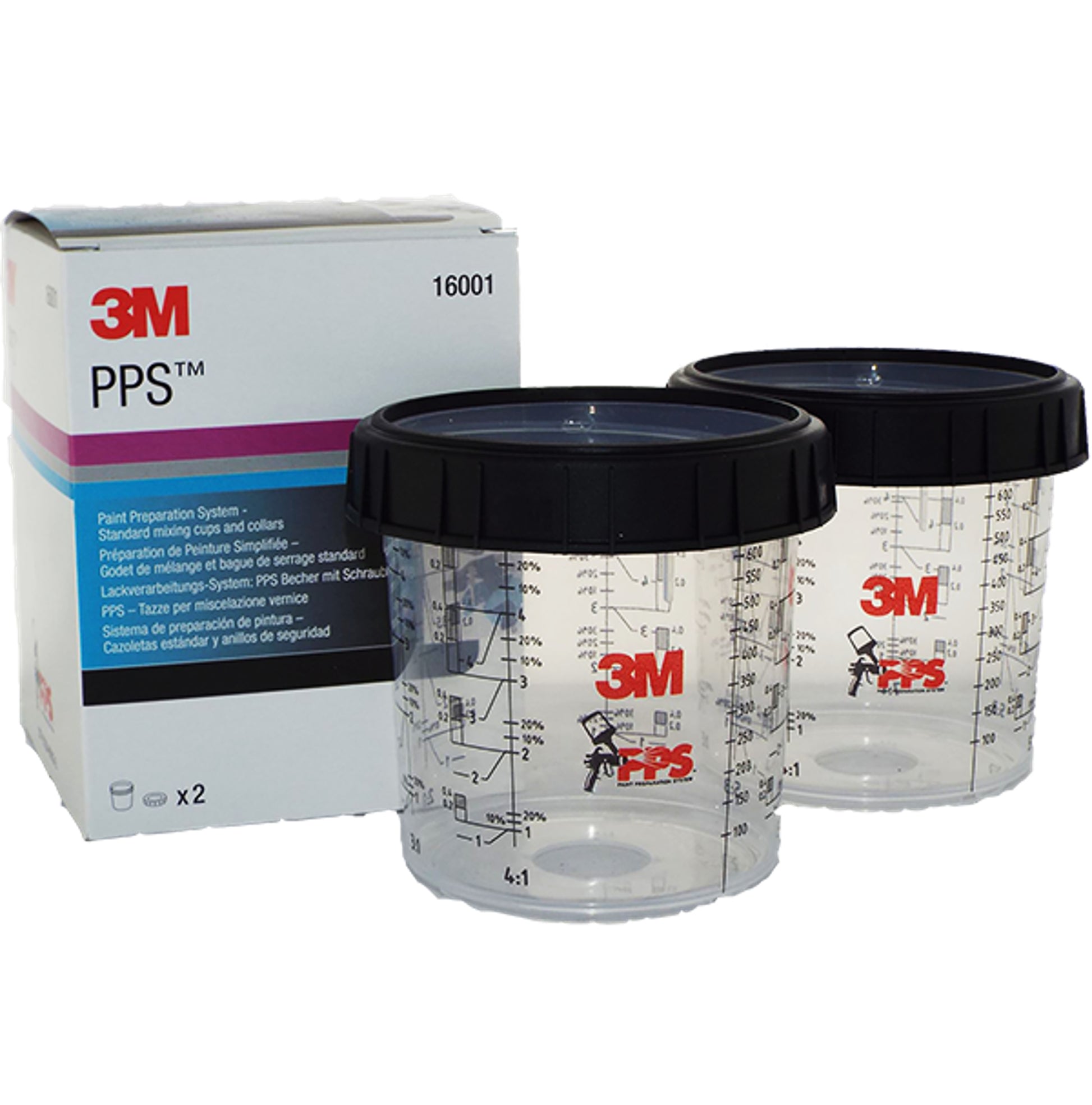

16001 - 2 rigid graduated cups 3M violet PPS 650ml + retaining ring

Technical characteristics 3M PPS Standard rigid holder 650 ml

• Product name: 3M PPS Standard graduated rigid holder 650 ml
• Brand / Reference: 3M – 16001
• Product type: reusable rigid holder with clamping ring for PPS system
• Packaging: 2 holders + 2 clamping rings
• Nominal capacity: 650 ml
• Graduations: mixing scales 1:1, 2:1, 3:1, 4:1 and printed dilution percentages
• Material: transparent rigid polypropylene, solvent resistant
• Liner compatibility: disposable PPS Standard liners ref. 16026
• Access windows: two longitudinal openings to grasp the liner and check the level
• Operating temperature range: 5 °C – 40 °C
• Durability / resistance: > 500 cleaning cycles, recyclable material

Properties and advantages

• Precise graduations for reliable dosing of bases, hardeners and thinners
• Transparent windows offering immediate visual control of product level
• Clamping ring provided: quick assembly of lids and liners without tools
• Up to 70% reduction in cleaning solvents thanks to the disposable liner
• Rigid polypropylene: resistance to solvents and deformation under intensive use
• Stable flat bottom limiting the risk of tipping over on the preparation table
• Recyclable material contributing to workshop waste reduction

Recommended applications

• Mixing and application of waterborne bases, HS/UHS clears and 2K primers
• Metallic, pearlescent and solid paints requiring precise dosing
• Local touch-ups or complete panel repairs in the spray booth
• Use with gravity feed guns equipped with standard PPS adapter

Instructions for use

1. Insert a 650 ml PPS Standard liner into the rigid holder.
2. Position the filter lid then lock it using the clamping ring.
3. Pour the paint, hardener and thinner following the printed ratios; mix inside the liner.
4. Attach the PPS adapter corresponding to the gun and screw the assembly.
5. Spray while monitoring the product level through the side windows.
6. After use, remove liner and lid, discard the liner; quickly clean the holder if necessary.

Photo non contractuelle
