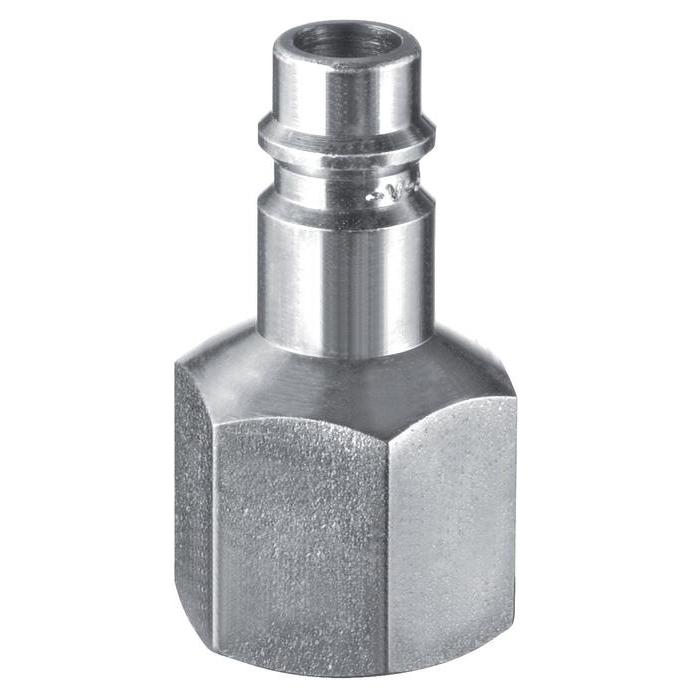

ERP_076101P2 - Set of 2 Female Thread Cylindrical Fittings European Profile 7.2mm G1/4

Technical characteristics Female cylindrical threaded fitting PREVOST 7.2 G 1/4″

• Product name : Female cylindrical threaded fitting 7.2 G 1/4″
• Brand / Reference : PREVOST – ERP 076101P2
• Product type : quick coupling European profile, female BSPP thread
• Dimensions : DN 7.2 mm; G 1/4″ thread (BSPP); packaging: 2 pieces
• Nominal flow rate : 2,300 L/min at 6 bar
• Operating pressure range : 0 – 12 bar (max 16 bar)
• Materials : stainless steel body, brass sleeve, stainless steel balls, NBR seal
• Operating temperature : –15 °C to +70 °C
• Material compatibility : European profile couplers DN 7.2, steel, aluminum or polyamide networks
• Application method : direct screwing on hoses, manifolds or compressed air branches
• Durability / resistance : > 100,000 coupling cycles, excellent corrosion and impact resistance
• Certification : compliant with ISO 6150 B, factory quality control ISO 9001

Properties and advantages

• Quick and secure connection thanks to high-retention ball locking
• Immediate sealing limiting air loss and maintaining network pressure
• Low pressure drop, preserving the performance of sanders, grinders and HVLP/HTE spray guns
• Stainless steel / brass construction offering high corrosion resistance
• Standardized European profile facilitating interchangeability with existing equipment
• Simple tightening: ready-to-use female BSPP thread without additional machining
• Packaging of 2 for quick replacement or creation of additional branches

Recommended applications

• Connection of orbital sanders, impact wrenches, polishers and other pneumatic tools
• Supply of paint spray guns in preparation areas or booths
• Extensions and distribution points on workshop compressed air networks
• Blowing, dust removal, technical cleaning operations

Instructions for use

1. Clean the male G 1/4″ thread and apply a PTFE tape or suitable sealing paste.
2. Screw the PREVOST fitting by hand, then tighten to torque (8 – 10 Nm) with a wrench while holding the body.
3. Pressurize the line and check for leaks using a foaming solution.
4. Insert the male European profile coupler until an audible lock is heard.
5. For disconnection, pull back the coupler ring while holding the tool to avoid whip effect.
6. Regularly check the seal condition and clean sealing surfaces during periodic maintenance.
