1061902 - HVLP spraygun SATA nozzle 1.2 Satajet X5500
-
In stock- Expected delivery on
An emergency? Call us at +33 (0)1 48 17 05 19
Couldn't load pickup availability

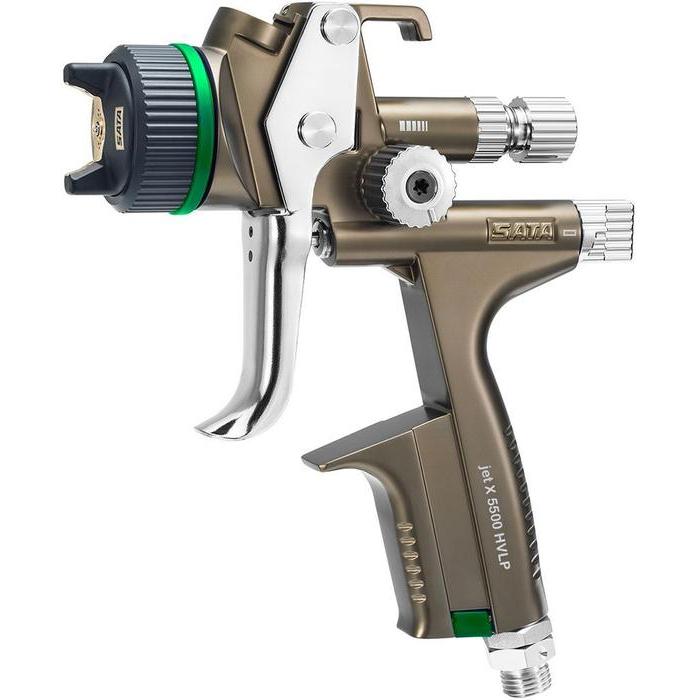

Spraygun for auto body painting Sata Satajet X5500 HVLP nozzle 1.2, designed for high-performance automotive spraying. Ideal for the application of waterborne paints, with an optimized spray pattern and a notable reduction of noise in the booth.
Technical characteristics Sata Satajet X5500 HVLP 1.2
- Reference: 1061902
- Brand: Sata
- Range: SATAJET X5500
- Type: HVLP auto body painting spraygun
- Nozzle: 1.2 mm
- Air cap: HVLP
- RPS cups supplied: 0.6 L and 0.9 L with swivel connector
- Air connection: 1/4 GM
- Weight: 496 g
- Pressure at the handle: 1.8 – 2.0 bars
- Pressure at the nozzle: 0.7 bar
- Air consumption: 430 L/min
- Application distance: 12 – 15 cm
- Spray shape: choice of "I" (elongated, dry core) or "O" (wide, wet core)
Properties and advantages
- Uniform and constant spray regardless of nozzle size
- Significant reduction of noise level in the booth
- Product savings thanks to better transfer efficiency
- Quiet nozzle with optimized flow
- Air pressure adjustment directly on the spraygun
- Quick cleaning thanks to the 2-part cap, without distribution ring
- Excellent adaptation to modern waterborne paints and fast clears
- Logical nozzle system: regular increase of flow with size
- Precise control of the painter’s gesture depending on the nozzle type used
Recommended applications
- Application of waterborne shades and automotive clears
- Localized repairs and blended joins
- Finish painting on light vehicles
- Use in professional paint booths
Instructions for use
- Choose the nozzle adapted to the desired finish ("I" for precise application, "O" for wetter spray)
- Adjust the air pressure on the spraygun (1.8 – 2.0 bars at the handle)
- Maintain an application distance of 12 to 15 cm
- Clean the spraygun regularly: easy disassembly without distribution ring
- Use with waterborne or solvent-based paints according to compatibility
Additional information
The Satajet X5500 adapts to the painter, not the other way around. Thanks to its new revolutionary nozzle system shaped like “I” or “O”, it allows total customization of the finish according to work style or climatic conditions. The spray remains constant in width and height, the product flow adjusts according to the chosen size.
The HVLP (High Volume Low Pressure) technology developed by Sata guarantees a transfer rate above 85%, thus optimizing paint savings. Perfect for the application of waterborne shades and to comply with the color charts of paint manufacturers.
Compatibility and alternatives
Compatible with all RPS systems and modern Refinish paints. In case of wear, component replacement is simple thanks to projector kits: 1063627 (nozzle 1.2), 1063635 (nozzle 1.3), 1063536 (nozzle 1.1). The main competitor remains Iwata with the WS400, followed by Devilbiss (DV1) and 3M™ PPS™ Series 2.0 for interchangeable nozzle systems.
