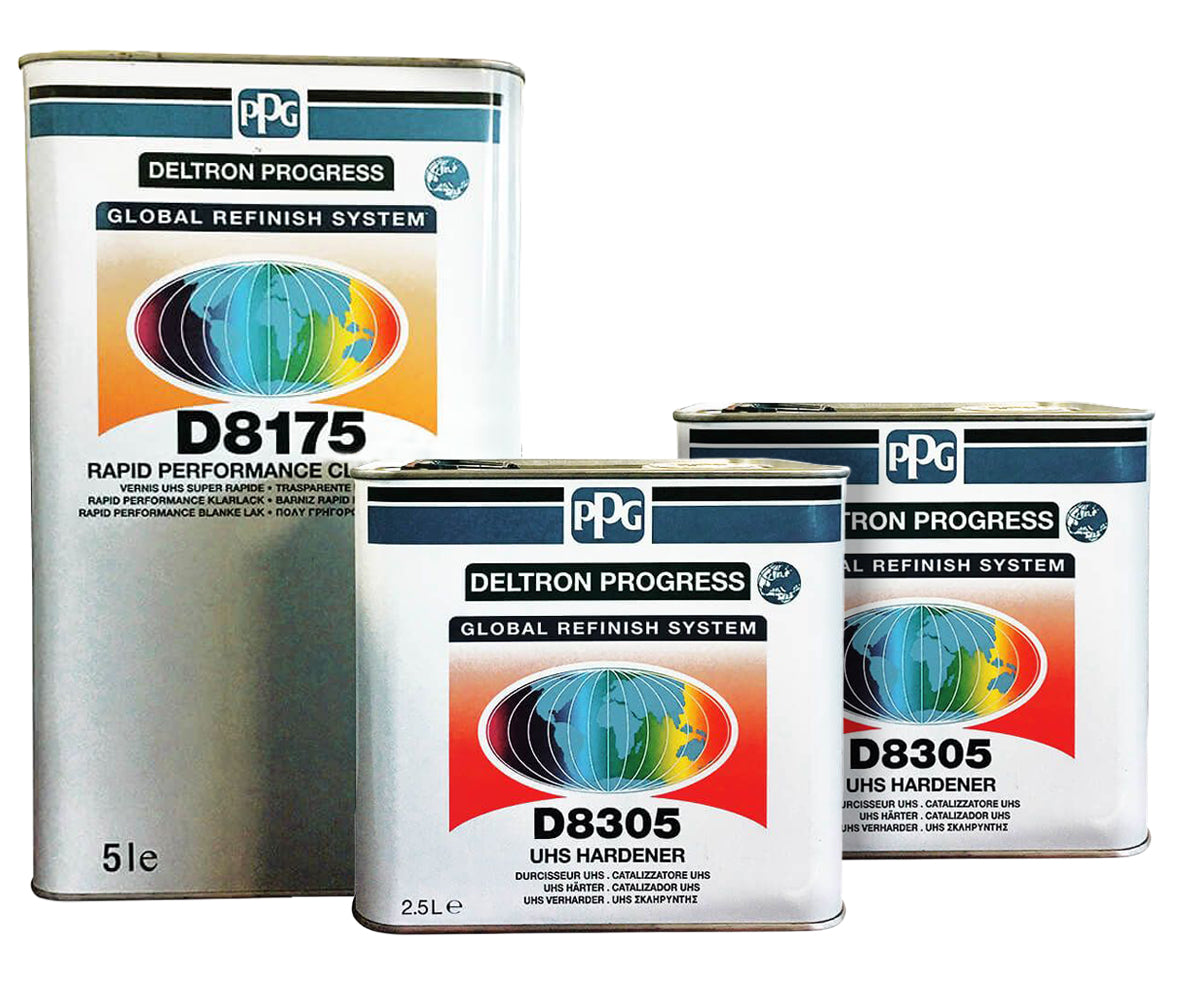

PPG automotive clear coat, fast drying Kit D8175 5L and its hardener D8305 2.5L

Technical characteristics

Before any handling of the product, please refer to its technical data sheet

Reference: Kit clears D8175 UHS + hardener D8305

Range: Deltron Progress

Clears gloss: Glossy

Content: clears 5L + hardener 2.5L

Mixing ratio:

Respect a mixing ratio of 2: 2: 0.5 by volume:

• 15-30°C: D8745 Accelerated thinner
• 30-35°C: D8746 High Temperature Accelerated thinner

Spraying:

• spraygun RP
• Nozzle 1.2mm
• Pressure 1.8 – 2.0 Bar

Application method:

• Apply 1 light/medium coat and one normal coat.
• The second coat is a normal coat.

Waiting time between coats:

• Flash off between coats: 5 minutes
• Flash off before baking or IR: 5 minutes

Drying time:

• Drying at 60°C: 5 minutes with D8745
• Drying at 40°C: 20 minutes with D8745

The PPG D8175 Clears & hardener Kit offers professional bodyshops a cutting-edge solution for automotive body repairs. Combining the PPG D8175 clears 5L with the hardener D8305 2.5L, this kit from the Deltron Progress range guarantees an exceptional finish.

Components

This pack contains:

• PPG D8175 Clears (5L): The PPG D8175 clears offer exceptional clarity and gloss to enhance the aesthetics of body repairs. Its high-quality formulation ensures durable protection against UV rays, weather, and environmental contaminants.
• Hardener D8305 (2.5L): The hardener D8305 is an essential element to ensure precise crosslinking of the PPG D8175 clears. Its controlled formulation contributes to strong adhesion and increased resistance, thus enhancing the durability of the finish.

Instructions for use

• Refer to the ratios: Check the product label or the documentation provided by the manufacturer to know the exact mixing ratio between the PPG D8175 clears and the hardener D8305. For example, this may be indicated as 2:1 or 4:1 (2 parts clears to 1 part hardener).
• Use appropriate mixing containers: Use clean and suitable mixing cups or graduated containers to measure the exact quantities.
• Mix: Pour the required amount of PPG D8175 clears into the mixing container. Then pour the appropriate amount of hardener D8305 into the same container.
• Do not shake vigorously: avoid shaking the mixture vigorously, as this can create unwanted air bubbles that could affect application and finish.
• Apply quickly: Once the mixture is ready, it is recommended to apply it quickly to ensure optimal results. Do not let the mixture sit too long before application.
